Apache – 配置https:证书

2019-11-19 02:36:44



第一步:创建文件夹

cd /private/etc/apache2

sudo mkdir ca

sudo chmod 777 ca //修改文件夹权限,在里面操作不用sudo



在ca文件夹下创建些内容,暂没用到

cd ca

mkdir demoCA

mkdir demoCA/newcerts

mkdir demoCA/private

touch demoCA/index.txt

echo “01” >> demoCA/serial



第二步:生成证书

openssl genrsa -out server.key 2048  //生成网站服务器公钥,用rsa算法

openssl req -new -out server.csr -key server.key

需补充以下信息:

Country Name (2 letter code) [AU]:CN[这里是国家,CN中国]

State or Province Name (full name) [Some-State]:shanghai

Locality Name (eg, city) []:shanghai

Organization Name (eg, company) [Internet Widgits Pty Ltd]:sj

Organizational Unit Name (eg, section) []:sj

Common Name (e.g. server FQDN or YOUR name) []:www.jobyme88.com[这个必须填正确,是你的服务器的域名,或者ip]

Email Address []:



openssl genrsa -out ca.key 2048 //生成ca密钥

openssl req -new -out -x509 -days 365 -key ca.key -out ca.crt //生成ca证书,365天有效,x509常用算法

openssl ca -in server.csr -out server.crt -cert ca.crt -keyfile ca.key //会生成server.crt,即签名后的服务器证书



第三步:生成client.key

openssl genrsa – out client.key 2048

openssl req -new -key client.key -out client.csr

openssl x509 -req -days 365 -ca ca.crt -cakey ca.key -cacreateserial -in client.csr -out client.crt

openssl pkcs12 -export -clcerts -in client.crt -inkey client.key -out client.p12 //将client.crt转换为 .pfx 格式的证书

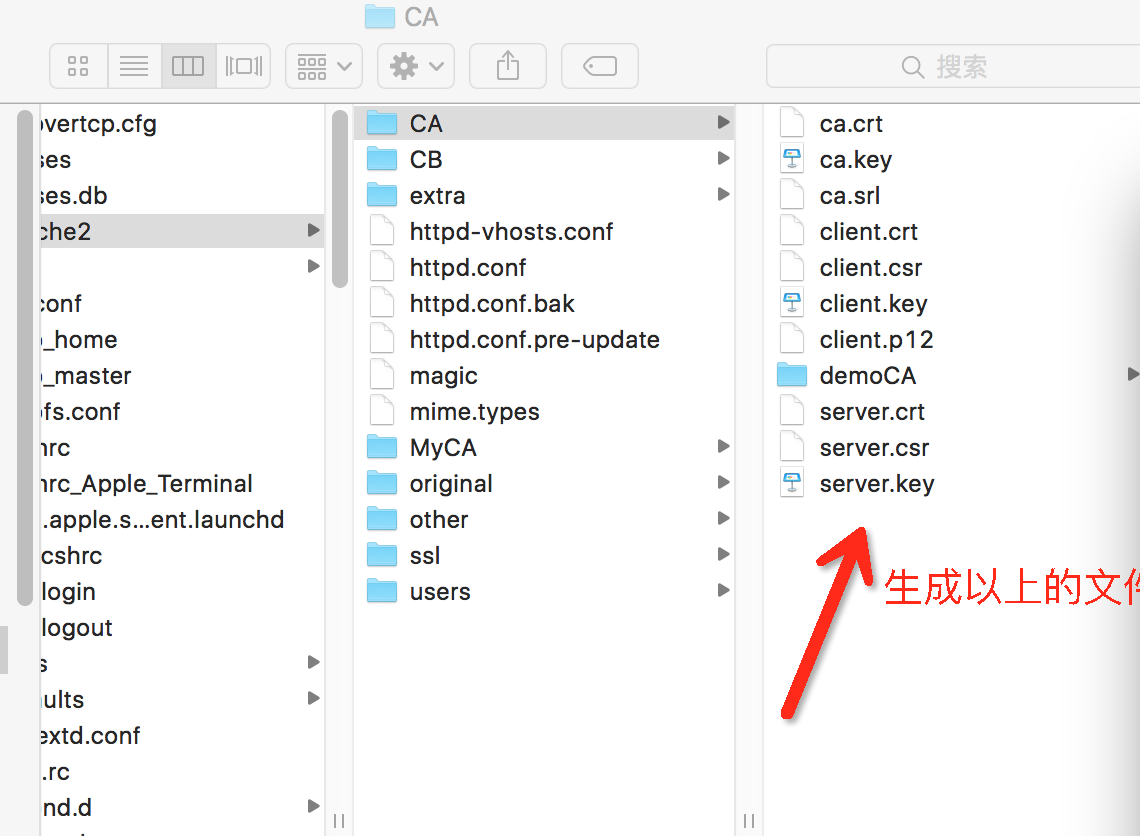

生成以下文件:

ca.crt

ca.key

ca.srl

client.crt

client.csr

client.key

client.p12

这里写图片描述





SSLSessionCache: ‘shmcb’ session cache not supported (known names: ). Maybe



第几步:httpd.conf配置

先备份下

sudo cp httpd.conf httpd.conf.bak

cd extra

sudo cp httpd-ssl.conf httpd-ssl.conf.bak

sudo cp httpd-vhosts.conf httpd-vhosts.conf.bak



打开ssl模块,去掉前面#

LoadModule ssl_module libexec/apache2/mod_ssl.so

报socache错误,再打开对应的socache模块即可

LoadModule socache_shmcb_module libexec/apache2/mod_socache_shmcb.so



引入httpd-ssl.conf,  httpd-vhosts.conf文件,去掉前面#

Include /private/etc/apache2/extra/httpd-ssl.conf

Include/private/etc/apache2/extra/httpd-vhosts.conf



修改Options FollowSymLinks Multiviews为:



第几步:httpd-ssl.conf配置

SSLCertificateFile “private/etc/apache2/ca/server.crt”

SSLCertificateKeyFile “/private/etc/apache2/ca/server.key”

SSLCACertificateFile “/private/etc/apache2/ca/ca.crt”



第几步:httpd-vhosts.conf配置


<VirtualHost *:443>
    ServerAdmin webmaster@sj.com
    DocumentRoot "/users/sj/sjWeb"
    ServerName www.sj.com
    ServerAlias sj.com

    ErrorLog "/users/sj/sjWeb/log/error_log"
    CustomLog "/users/sj/sjWeb/log/access_log" common
    <Directory "/users/sj/sjWeb">
                Options Indexes FollowSymLinks MultiViews
                AllowOverride All
                Require all granted
    </Directory>

    SSLEngine on
    SSLCipherSuite ALL:!ADH:!EXPORT56:RC4+RSA:+HIGH:+MEDIUM:+LOW:+SSLv2:+EXP:+eNULL
    SSLCertificateFile /private/etc/apache2/ca/server.crt
    SSLCertificateKeyFile /private/etc/apache2/ca/server.key
    SSLCACertificateFile /private/etc/apache2/ca/ca.crt
    SSLVerifyClient optional
    SSLVerifyDepth 10
</VirtualHost>

这里注意几点:

1)先不要配置ssl,确认虚拟主机的配置正确,http能正常访问。

发现VirtualHost块格式都要对齐,先前我都用tab,但不能,后来Directory外用4个空格,Directory里用tab就可以访问了。

2) 端口改为443(原来80),不然会报Forbidden错误

3)出现Safair cannot establish secure connection错误,把SSLVerifyClient require改为optionsl就可以了。



最后

sudo apachectl configtest //检查配置文件

sudo apachectl -k restart //强制重启

双击server.crt

在浏览器输入https://www.sj.com应该能正常访问,其它没有ssl证书的虚拟主机还是可以http访问,不影响。



最后,感谢这位朋友,https://blog.csdn.net/mn704058053/article/details/51879159
